The ultimate cobot solution

Epson AX6

Collaborative automation just got an upgrade

Introducing Epson’s first collaborative robot, the Epson AX6, a masterpiece of high performance engineering.

Download brochure

The highlights

Exceptional performance with user-friendly operation

Precision safety and reliability combined in one robot arm with a sleek and compact design for space-saving installation
Feather icon
Ultra-rigid and lightweight robot arm made of carbon fibre with efficient motor mechanics
40%
Up to 40%* energy savings compared to equivalent sized industrial robots
Code icon
Intuitive programming languages. User-friendly Python and robot block programming options

Key features

Power, agility, and precision

Sleek design

Crafted from lightweight carbon and finished
with a smooth and screwless design.

Exceptional precision

With 6 axis, a 900mm arm reach and
0.03mm repeatability, the AX6 enables
perfect execution of a wide variety of tasks.

Repeatability
of 0.03mm

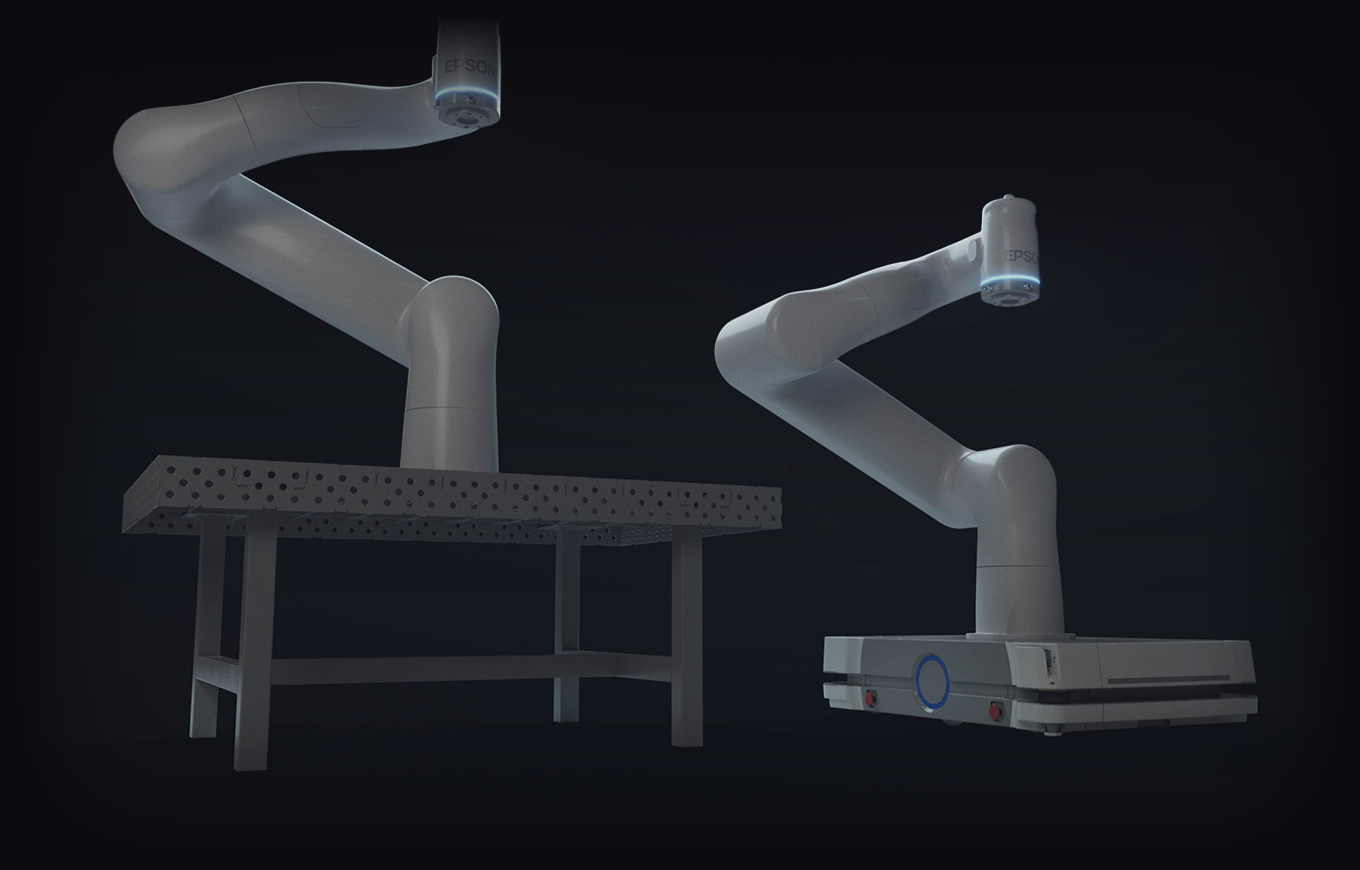

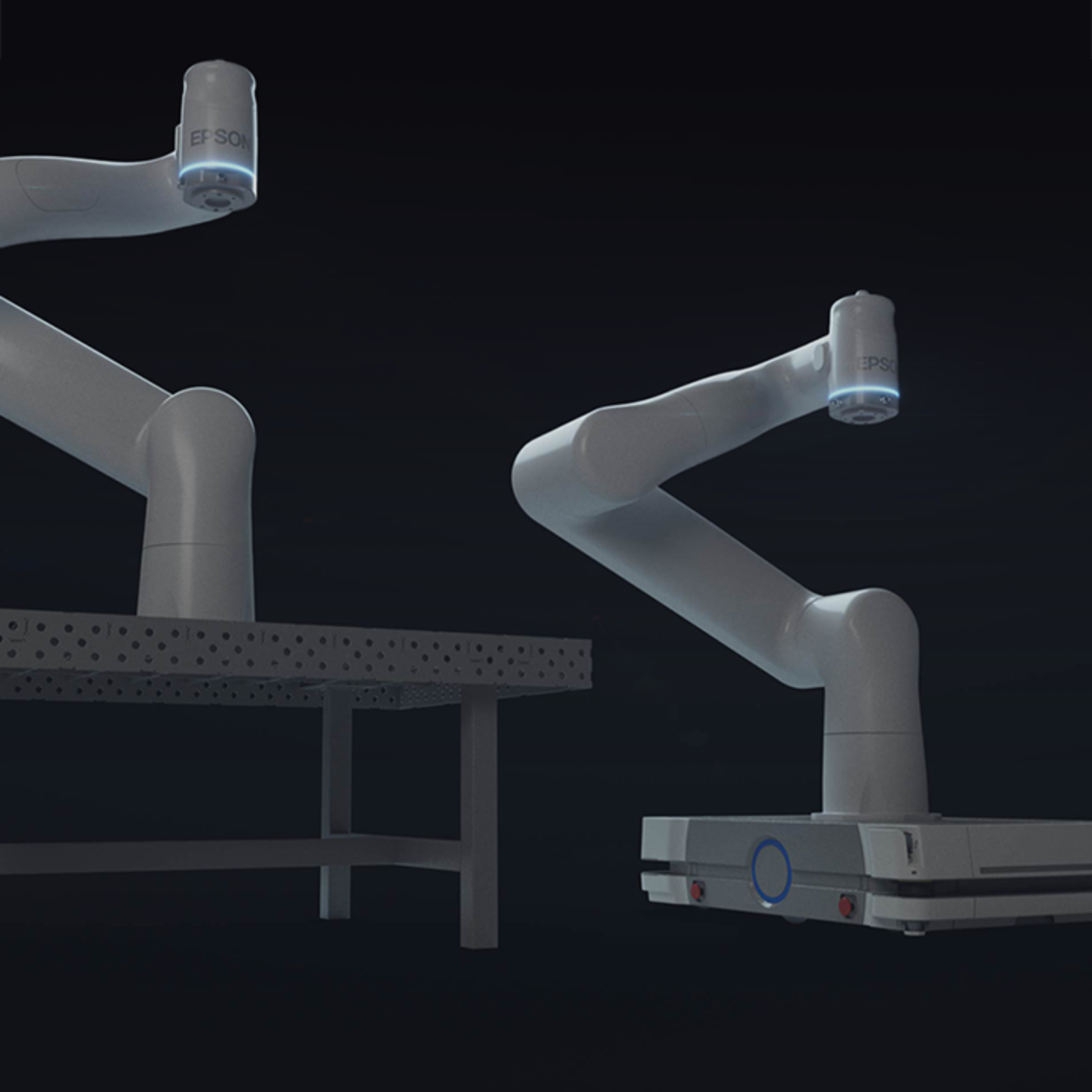

Versatile mounting options

Integrated AC/DC power supply, ultra
lightweight robot as well as the small and
compact controller makes the cobot system
perfect for operation from fixed location or
mounted on an AMR.

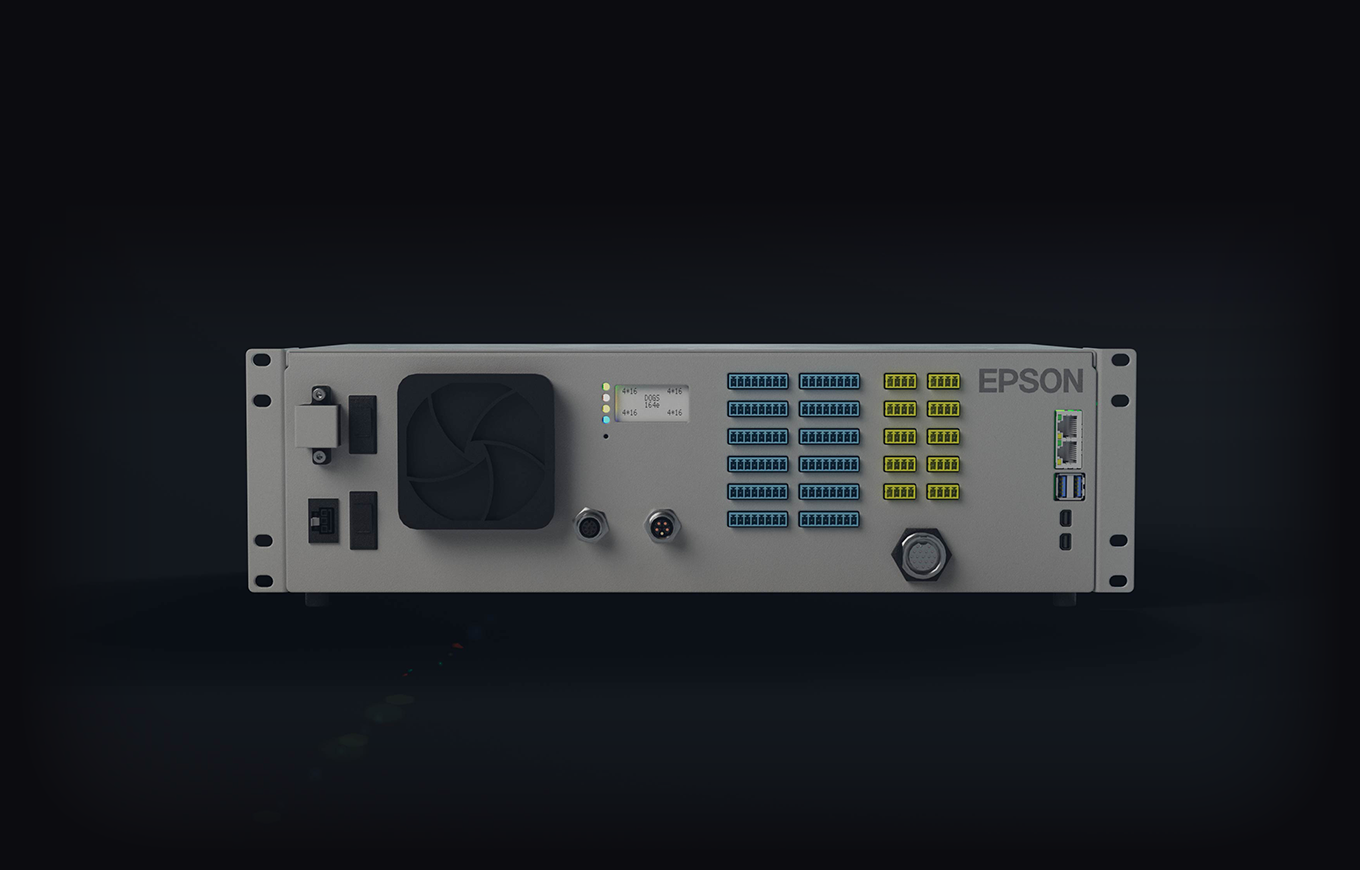

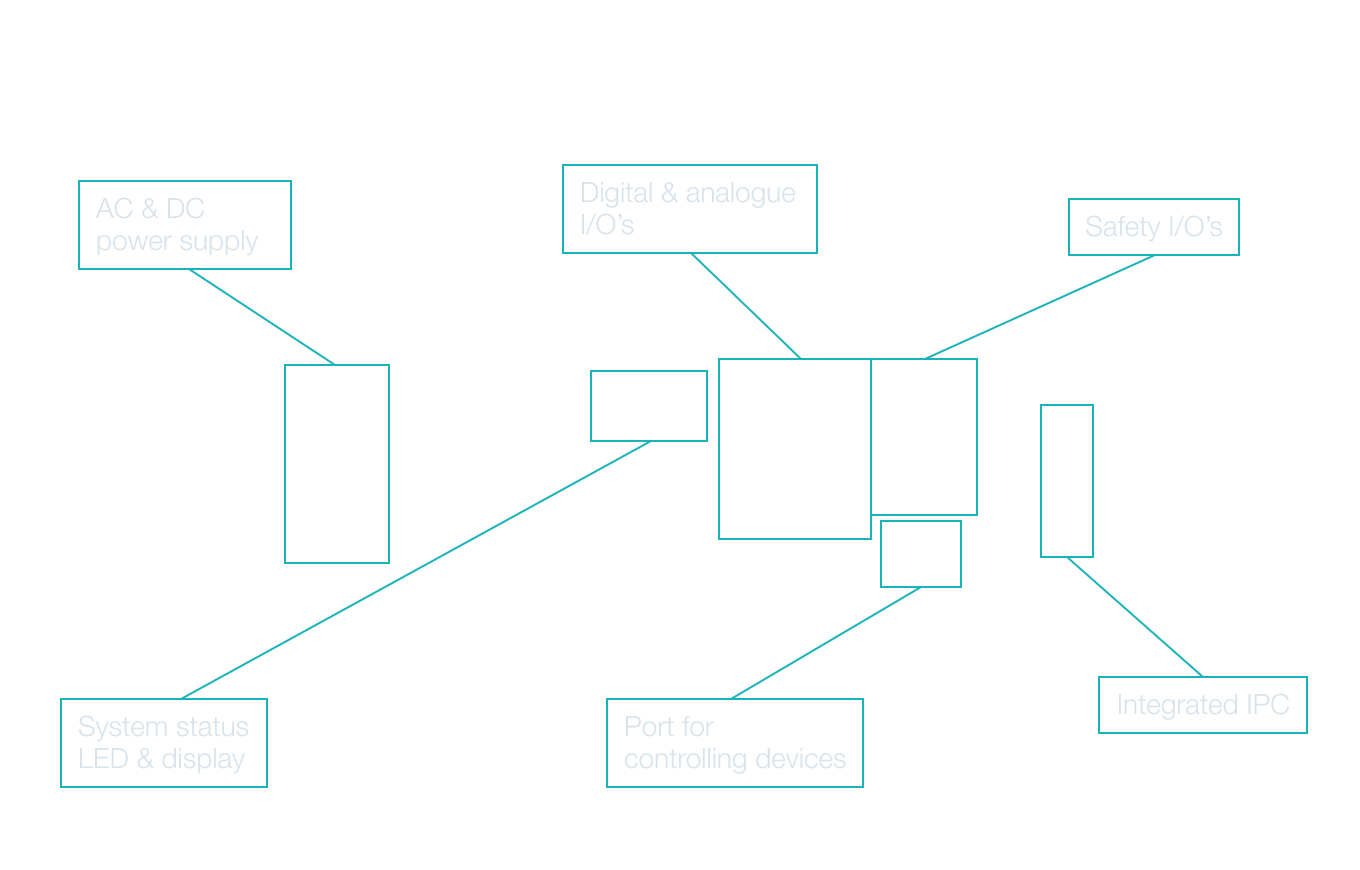

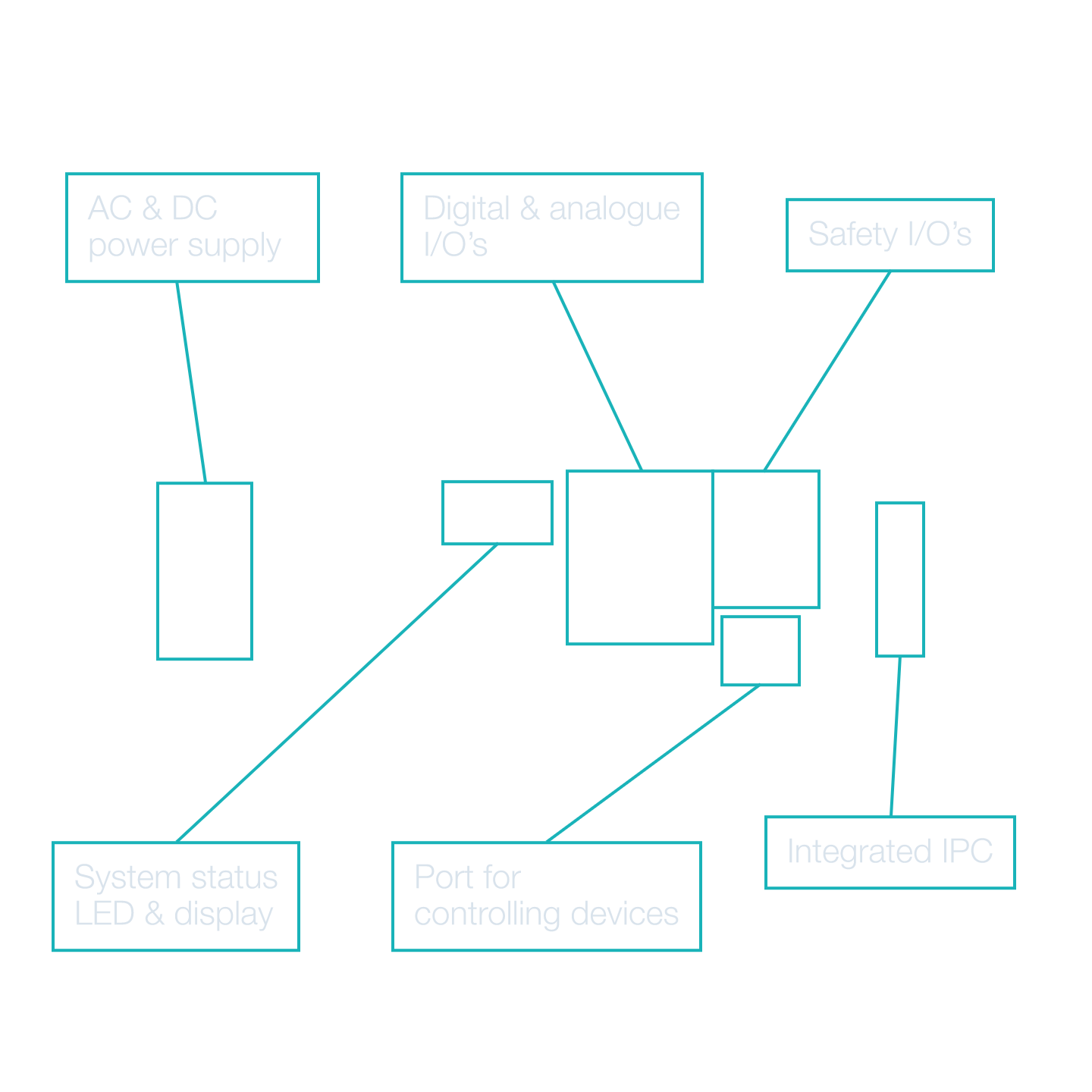

Integrated power

State of the art connectivities for easy integration into machine landscape. Using easy to connect industrial ports accessible on front side, combined with a high performance IPC and topped with an integrated AC/DC power supply as standard letting you create new applications with no limits.

Powerful

With a 6kg payload, the AX6 delivers a
performance that is powerful and agile.

State-of-the-art connectivities

The AX6 features integrated user lines and state-of-the-art connectivities for seamless machine integration, including:

1 x M12 Ethernet port
2 x M8 tool connectors
2 x 4mm pneumatic coupling
Endless rotation
User-friendly operation

The AX6 includes multi-functional user buttons for simple, fast and safe operation:

Unlocking motor
Open & close gripper
Save robot position
2x free assignable buttons
Status display
The multi-colour LED ring that changes colour to instantly reflect the robot status — giving you real-time status visibility at a glance.
Automatic mode seamlessly executes programmed tasks with 0.03mm repeatability, ensuring high-precision automation.
Teach mode for intuitive programming — move the Cobot by hand to set points and create workflows with ease.
Warning and user error status alerts operators to potential issues or user errors, providing clear feedback through visual signals for swift troubleshooting.
Emergency stop instantly halts all robot movement, ensuring maximum safety in critical situations. Built-in safety functions eliminate the need for additional fencing.
Jog and teach

The hand guided jog and teach functionality enables a quick and safe teaching process for points or paths.

Outstanding safety standards Background

The AX6 meets the latest industry standards and machine directives and includes an extensive range of safety features:

Monitored standstill (SS2)
Monitored speed (SLS)
Monitored position (SLP)
Monitored power and force limiting (PFL)

Applications

Made to handle the toughest jobs

The Epson AX6 cobot solution can be used in a wide variety of environments thanks to IP54-level protection and ISO 5 cleanroom classification. It supports a full suite of applications making it versatile enough for use across a range of industries

Pick and Place

Machine tending

End of line operations

Assembly

Dispensing

Inspection

Grinding

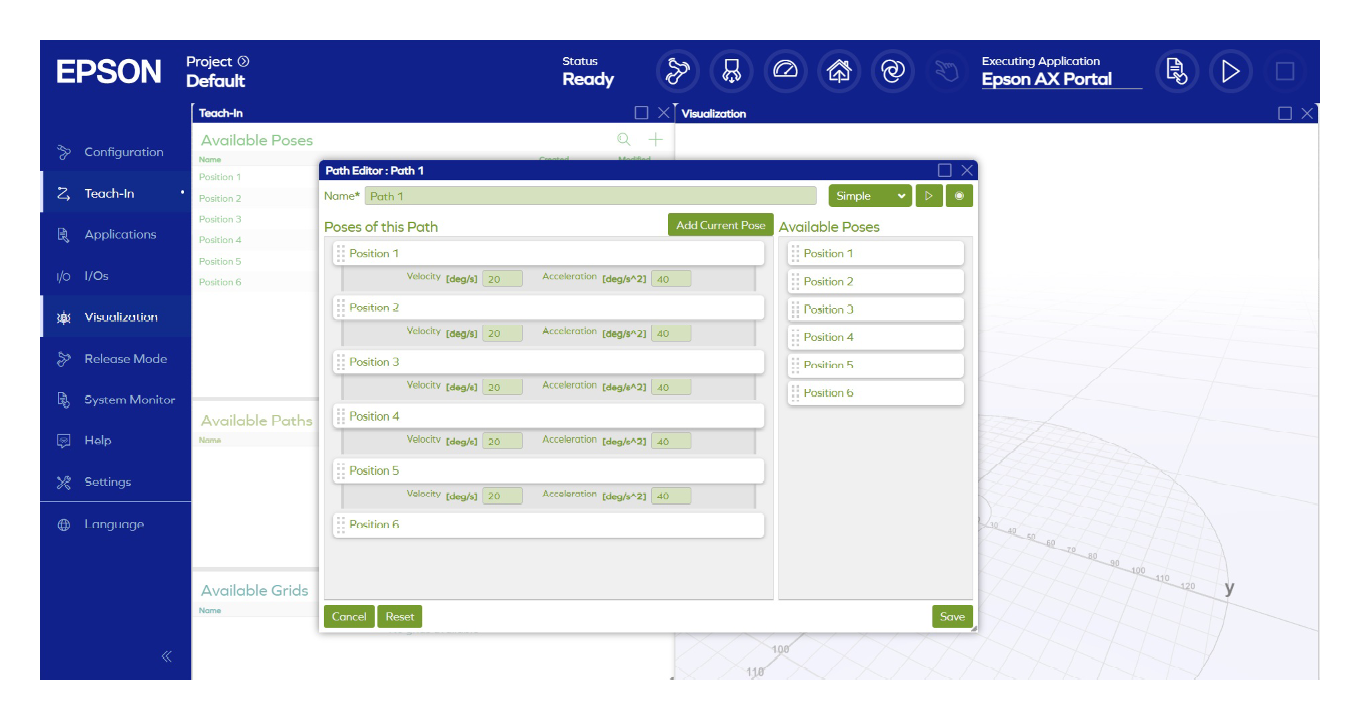

Epson AX Portal

Simple and intuitive program building

Make executing even the most complex applications easy with the Epson AX portal. A secure, customisable web interface ensures set-up and operation is simple.
With maintenance and testing capabilities included, and customer support features, your operations are backed by more than 40 years of experience in the automation industry.

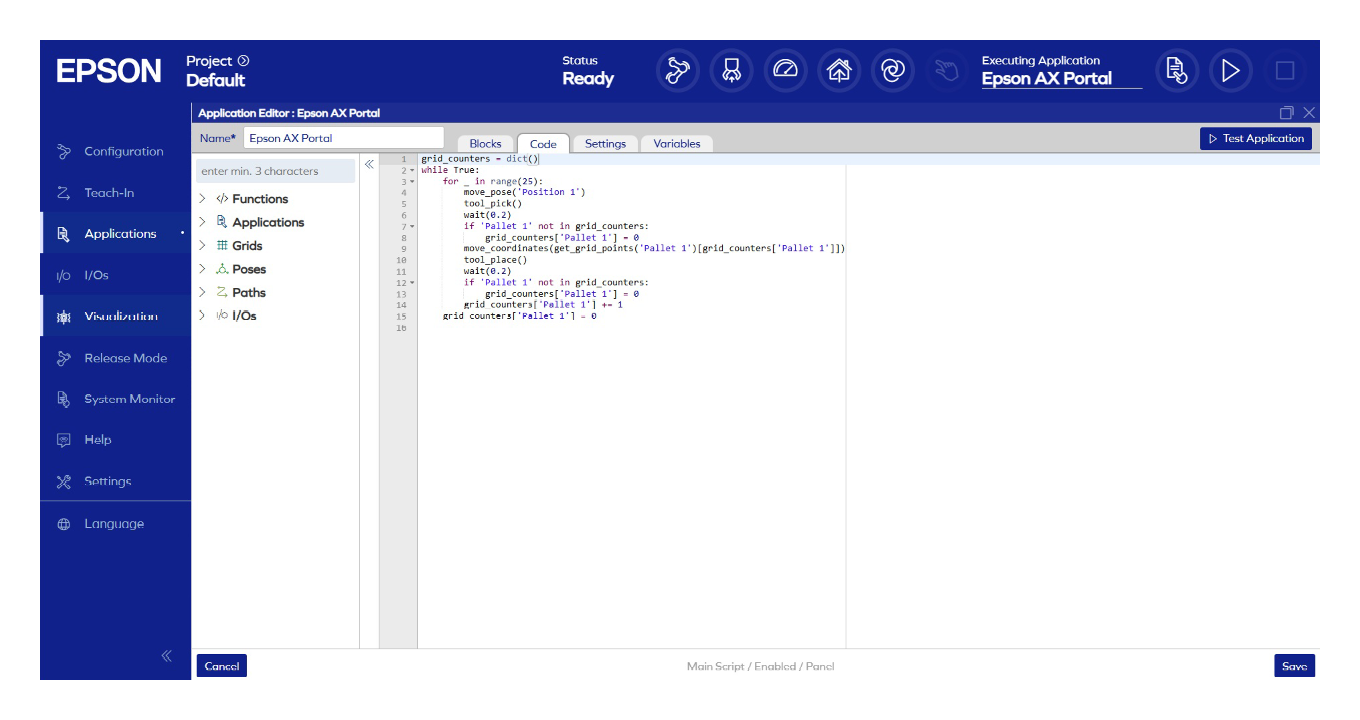

Python programming

Use your existing Python programming skills to create even complex robot applications.

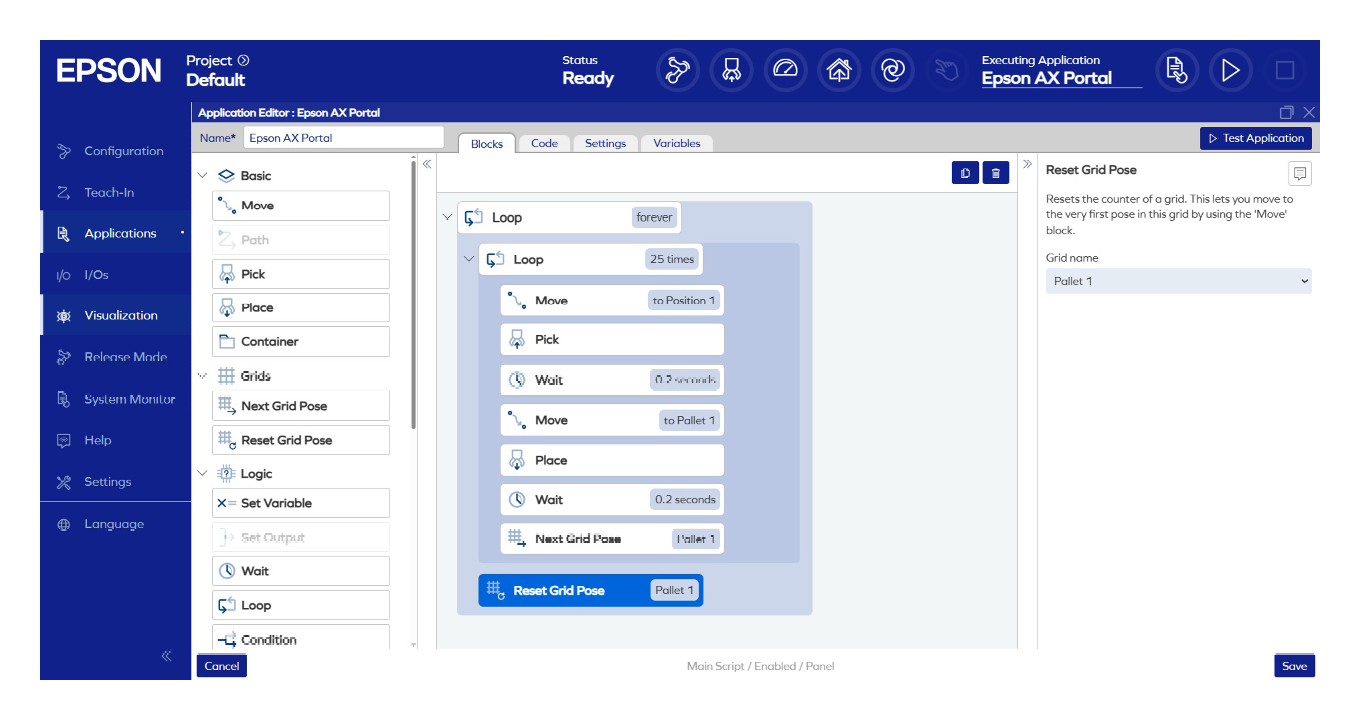

Block-programming

Robot block-programming commands, fully integrated modules and libraries make automation easy, even without programming experience.

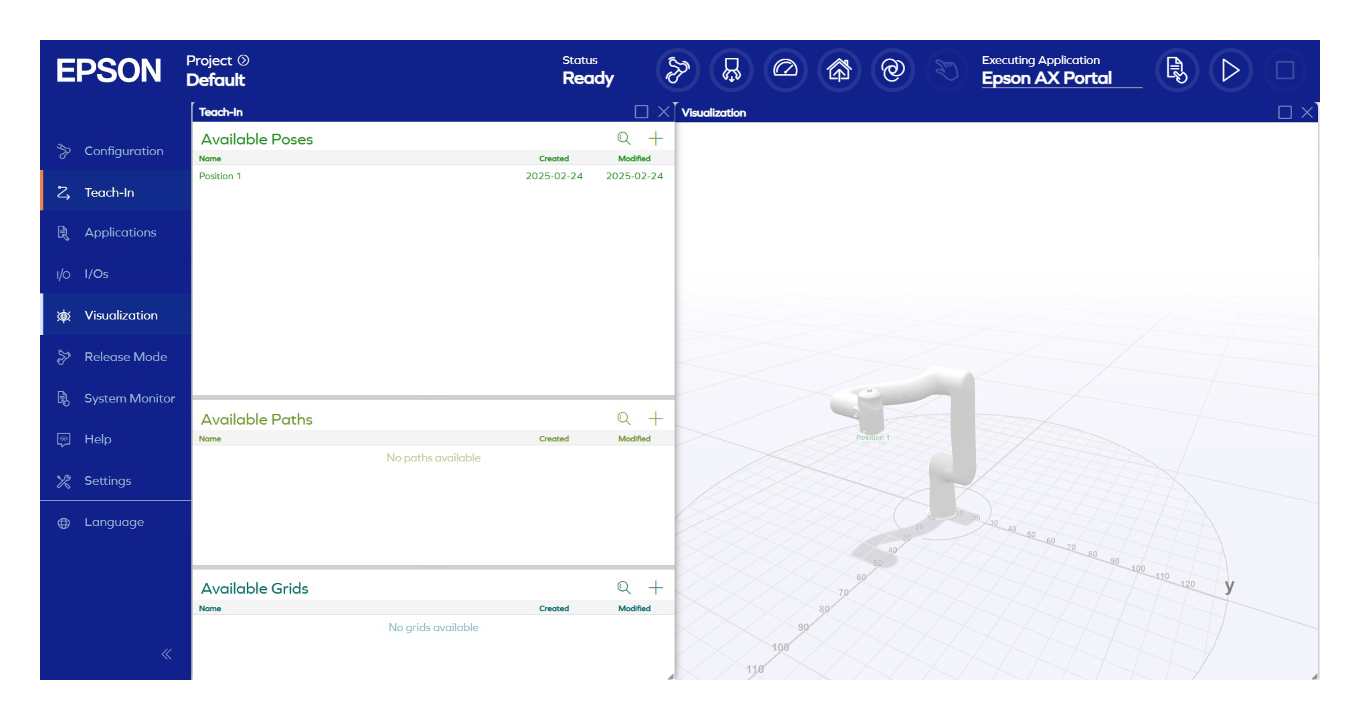

Conduct risk-free testing with a 3D simulator

Eliminate the risk of downtime with offline testing and programming phases via an integrated 3D simulator.

Learn as you go with wizards and guides

Easy-to-use guides and templates make creating tools, pallets or defining systems swift and seamless.

Third party compatibility

Seamless integration - the key for efficient automation

Our Epson Compatibility Program allows you to build your own application with the AX6. State-of-the-art connectivity and a standard flange connection (ISO50) allow you to select robot peripherals from any third-party supplier.

A variety of tools and components are supported, including grippers, suction cups, and cameras for ultimate flexibility to enhance your operations.
Background
Background

Future-proof solutions

Enable technology and AI features for future-proof solutions

As for the future, the AX6 is ready. With AI and advanced technology features that can be enabled as the system evolves.
Epson AX6

Introducing a complete collaborative automation solution for a wide range of industries

Technical specification

Download brochure

Epson AX6-A901S

PayloadMaximum (kg)6
Arm lengthP-Point: J2-J5 center (mm)900
J2-J6 Flange surface990
Repeatability (ISO 9283)Joints #1-6 (mm)0.03
Max. motion rangeJoint #1 (deg)±207
Joint #2 (deg)±155
Joint #3 (deg)±160
Joint #4 (deg)±200
Joint #5 (deg)±155
Joint #6 (deg)∞
Max. operating speedJoint #1 (deg/s)180
Joint #2 (deg/s)180
Joint #3 (deg/s)180
Joint #4 (deg/s)300
Joint #5 (deg/s)300
Joint #6 (deg/s)300
Cartesian at TCP (mm/s)2000
Weight17 kg
Mounting typeFloor, Wall, Ceiling
Environment specificationIP classificationIP54
Clean room classification (ISO 14644-1)ISO 5
Working temperature0 to 40°C
Robot flangeI/O's4× Digital (24V, 2A), 4× Analogue, RS485, 1× Ethernet (M12)
Compressed Air2× 4mm quick coupling
Flange connection (ISO9409-1)50-4-M6
Applicable ControllerEpson RC-A101
Robot cable length0.5/1.5/3/5/10 m
Supported devicesEpson AX Tablet Holder, Epson AX Light grip switch
Safety functionsSS2, SOS, SLS, SLP, PFL, STO, HGC
CertificatesISO-10218-1 (2025), ISO 13849-1, ISO 15066, ISO 14644-1

Epson RC-A101

Dimensions440 × 220 × 140 mm
Weight6 kg
Mounting typeTable top, Rack mount (19 inch)
I/O’s 24 × 24V DC, 5A
Digital: 16 × I/O’s, 1A each
Analogue: 4 × I/O’s [0-10V] or [4-20mA]
Connections 1 × Ethernet (RJ45), 2 × USB 3.0, 2 × Mini display
Communication protocols TCP/IP, ROS 2, REST
Safety I/O’s 10 × Input, 6 × Output
Power typeAC/DC
Power supply 100-240V 50-60Hz (AC)/48V (DC)
Power consumption 190 W (AC) / 160 W (DC)
Controller cable length 5 m

Cobot AX6 Collaborative Robot FAQs

What is the payload capacity of the AX6-A901S?
Epson's AX6-A901S arm robot, delivers powerful and agile performance with a payload capacity of 6kg.
What is the arm reach for the AX6 Epson robot?
The AX6 Epson robot has an arm reach of 900mm.
Is the AX6-A901S compatible with AMRs?
Yes, the Epson AX6-A901S robot is designed to be compatible with AMRs (Autonomous Mobile Robots).
Can I use third-party accessories with the AX6-A901S robot?
Yes. With the Epson Compatibility Program you can build your own application with the AX6. This State-of-the-art connectivity and a standard flange connection (ISO50) allow you to select robot peripherals and accesories from any third-party supplier.
Does the cobot require safety fencing?
Built-in safety functions could eliminate the need for additional fencing.
What programming languages does the AX Portal support?
The AX portal supports python programming, which is a versatile programming language. This eliminates the need for users to learn a new, specialised robot programming language, making it more accessible for a broader range of developers and applications, especially in R&D and system integration environments
Where can I get technical support?
Get in contact with our service & supports engineers
