In-Office Confidential Paper Upcycling

Watch the video

Benefit from a revolutionary technology

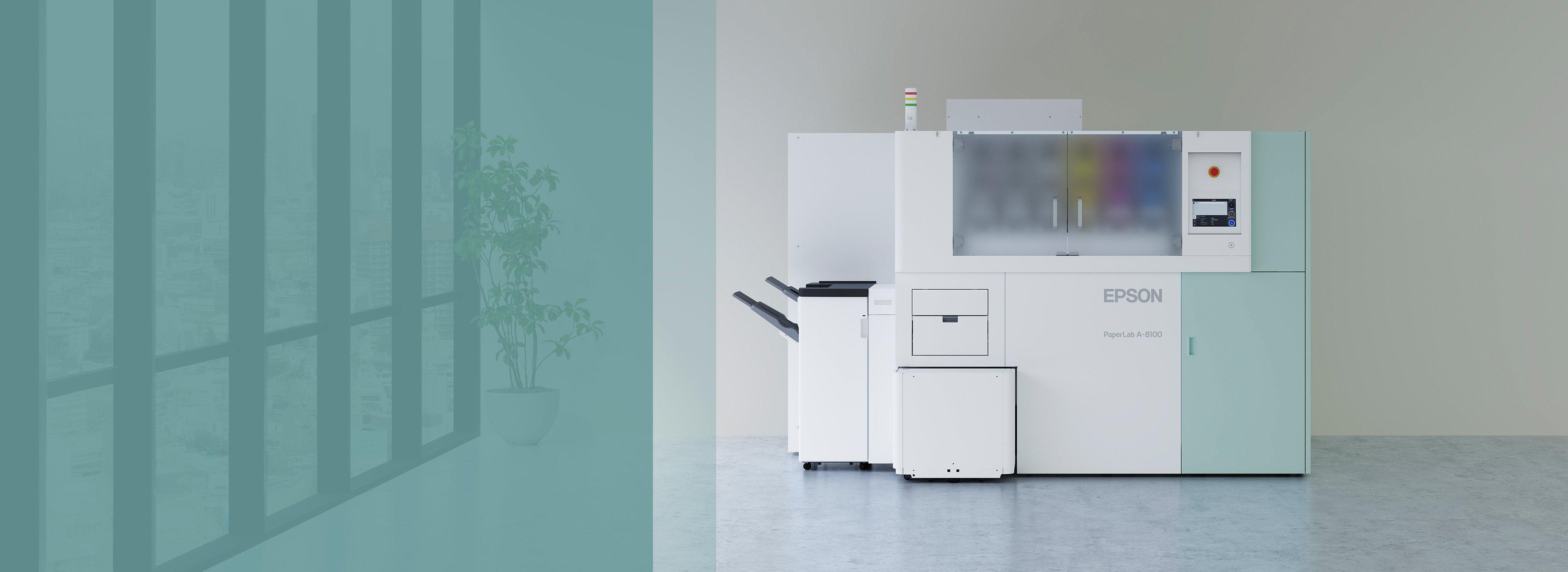

PaperLab is the world’s first¹ in-office paper secure recycler that turns waste paper² into new paper using a virtually dry process³ powered by Epson’s unique Dry Fiber Technology. This revolutionary on-demand solution enables your business to securely destroy sensitive information, recycle, reduce its societal and environmental impact and take control of paper supplies.

Download brochure

Completely destroy sensitive information

Highest security certification (Level P7)

Turn waste paper² into new paper – on demand

Produce up to 720 sheets per hour

Produce different stocks up to 240 g/m² Produce different colours

Assist with Sustainable Developmental Goals

Contribute to the circular economy

Responsible water usage

Reduce your CO₂ footprint

Remove the supply chain

Watch the video

Specifications

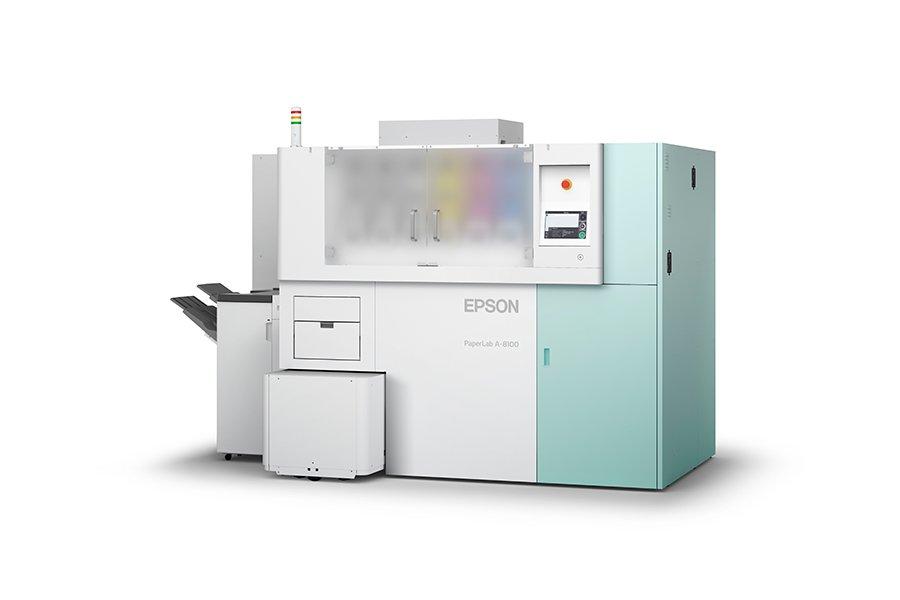

Model		PaperLab A-8100
Production performance		A4 size plain paper: Max 720 sheets/hour A3 size plain paper: Max 360 sheets/hour (Media Support Mode) A4 size: 600 sheets/hour
Produced paper (Dry Fiber Paper) specification	Size	A4 / A3
	Thickness	Plain paper: 90g/m2, 100g/m2 and 110g/m2 Thickness paper: 150g/m2 to 240g/m2
	Colour support	Available with mixing Paper Plus (White, cyan, magenta, yellow)
Paper feeding specification	Size	A4 / A3
	Thickness	Plain paper copier from 64g/m2 to 108g/m2
Repeat recycling		DFP mixing 10%
Electrical specification	Power supply	200V 3 phase AC
	Power consumption	6.5kW
Dimensions		2.85 (W) x 1.43 (D) x 2.01 (H) m (Excluding external units such as paper feed unit, stacker, etc.) Height including silencer
Weight		1,750kg
Noise		65dB or lower
Environmental specification	Operating	Temperature: 12°C to 28°C Humidity: 30% RH to 70 RH
	Storage	Temperature: 4°C to 40°C Humidity: 10% RH to 70 RH

Changing the future of paper

Learn more about the innovative technology behind Epson’s PaperLab A-8100 In-office dry papermaking system below and contact us for additional information.

Powered by Dry Fiber Technology

A combination of three processes is used to turn waste paper² into new paper – defibrating, binding and forming. Unlike conventional papermaking, PaperLab uses virtually no water from start to finish. This virtually dry process³ makes it possible to produce new paper in a small, localised cycle.

Watch the video

Used printed paper

Defibration

Removes all ink and toner and reduces the waste paper² to its fibres.

Binding

Brings the clean fibres back together, strengthening them and forming new paper to a specified colour and weight.

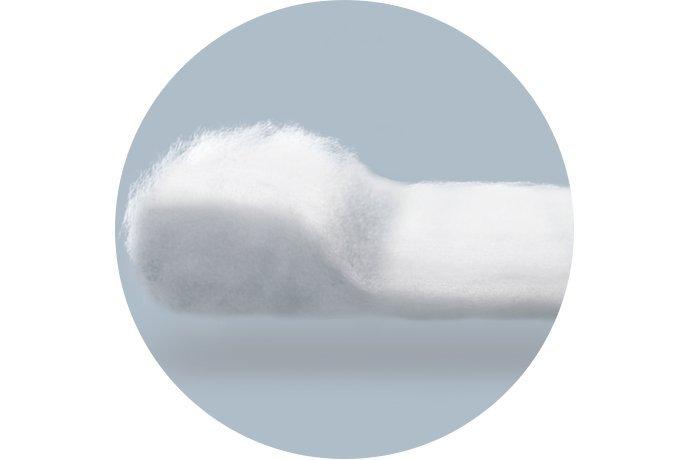

Forming

Forms by pressing then cuts the new paper into A4 or A3 sheets.

New paper

Dry Fiber Paper

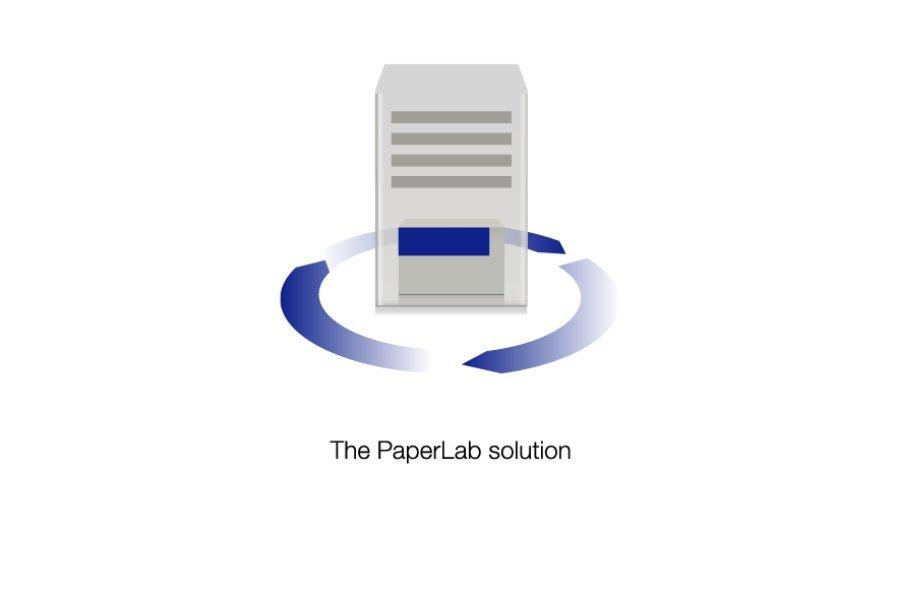

Destroy and recycle sensitive documents on demand

When data security is crucial for your business, PaperLab delivers absolute certainty that key confidential waste is safely and effectively destroyed. It removes toner and inks and takes the waste paper² back to its fibres

Your information stays safely on site and is never entrusted to external contractors.

This new solution goes way beyond conventional levels of information destruction, with a rating of P7.

ISO/IEC 21964-2 Security Level P7: Destruction of data carriers in such a way that the data on them cannot be reproduced with current technology or scientific knowledge (<5 mm² particle size).

View recycle certificate

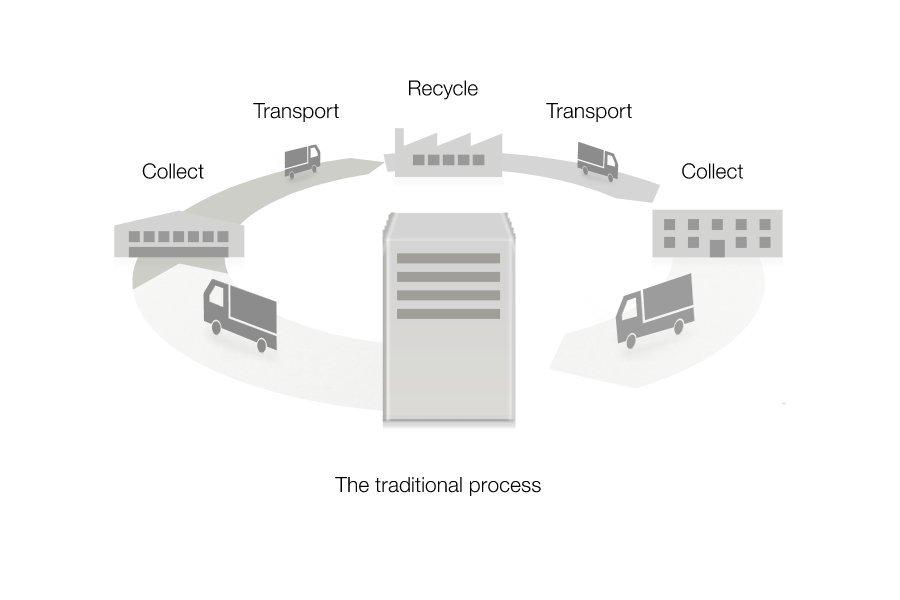

TRADITIONAL PROCESS

Standard shredding solution

The traditional process to destroy confidential office paper is by shredding. This involves bagging up the waste paper which then needs to be collected or delivered to the shredding plant.

Shredded paper is only partially destroyed, despite undergoing a time-consuming process. It also needs to be processed and collected.

External specialist confidential waste paper processing plants can be expensive, require logistical organisation and have a large CO₂ footprint.

New paper must be sourced, purchased and delivered, requiring more planning and logistics.

Contribute to a circular economy

Preservation of water resources PaperLab paper requires 95 to 96% less water⁶, calculation method verified by TÜV Rheinland

Reduction of CO₂

Saving wood resources

Upcycle and create paper on demand

PaperLab has the versatility your business needs, being able to produce paper at high speed and in a range of formats and finishes on demand:

Size A4 and A3
Plain paper stock at 90g/m²
Card stock from 150-240g/m²
A range of colours
Business cards
Notepads

PaperLab can handle waste paper² in A4 or optional A3 sizes, and copy paper from 64g/m² to 108g/m².

PaperLab can produce up to 720 A4 sheets or 360 A3 sheets per hour⁴ after the first sheet has been produced, which equates to 5,760 sheets per 8-hour work cycle.

First sheet out time is three minutes⁴. This recycled paper can be used with ordinary laser printers, inkjet printers and copiers.

Support

Visit our support page to find useful information and how to contact us.

Search product

Register your product

Epson product registration is fast and easy.

Register it here

¹ Source: Epson research conducted in November 2016.

² PaperLab can use ordinary A3 and A4 - sized copy paper as raw material.

³ A small amount of water is used to maintain a certain level of humidity inside the system.

⁴ Approximate values. Output speed, first sheet out time may vary depending on environmental conditions.

⁵ DIN 6738 standard classifies the lifespan of papers and is based entirely on the effect of accelerated aging on the strength of the paper. Standard approved by The Deutsches Institut für Normung (German Standards Institute). LDK 24-85 is the highest lifespan class. Papers in this lifespan class may be called ‘non-aging’ as according to today’s level of knowledge and with gentle handling and storage, they are expected to have a lifespan that can meet the highest requirements.

⁶ Compared to fresh fibre paper & recycled paper produced in Germany: October 2019.
